Choosing the right airless spray tip size is crucial for achieving the desired finish and efficiency in your painting projects. The spray tip size determines the amount of paint that is sprayed out and the width of the spray pattern. Selecting the correct tip size can make a significant difference in the quality of your work.
With a wide range of tip sizes available, it can be overwhelming to know which one to choose. Referencing an airless spray tip size chart can help simplify the selection process and ensure you are using the most suitable tip for your specific application.

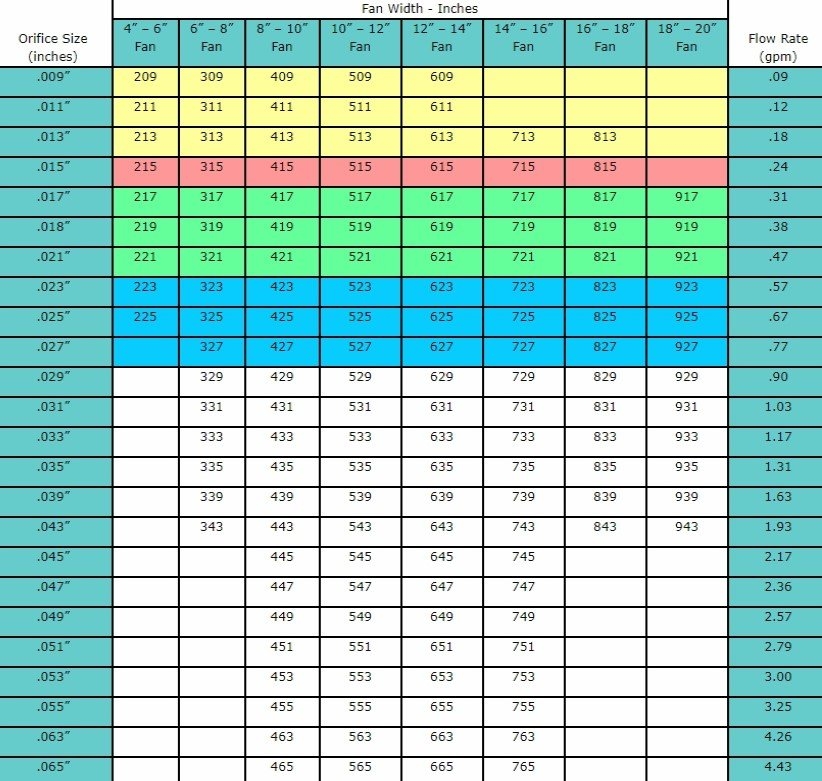

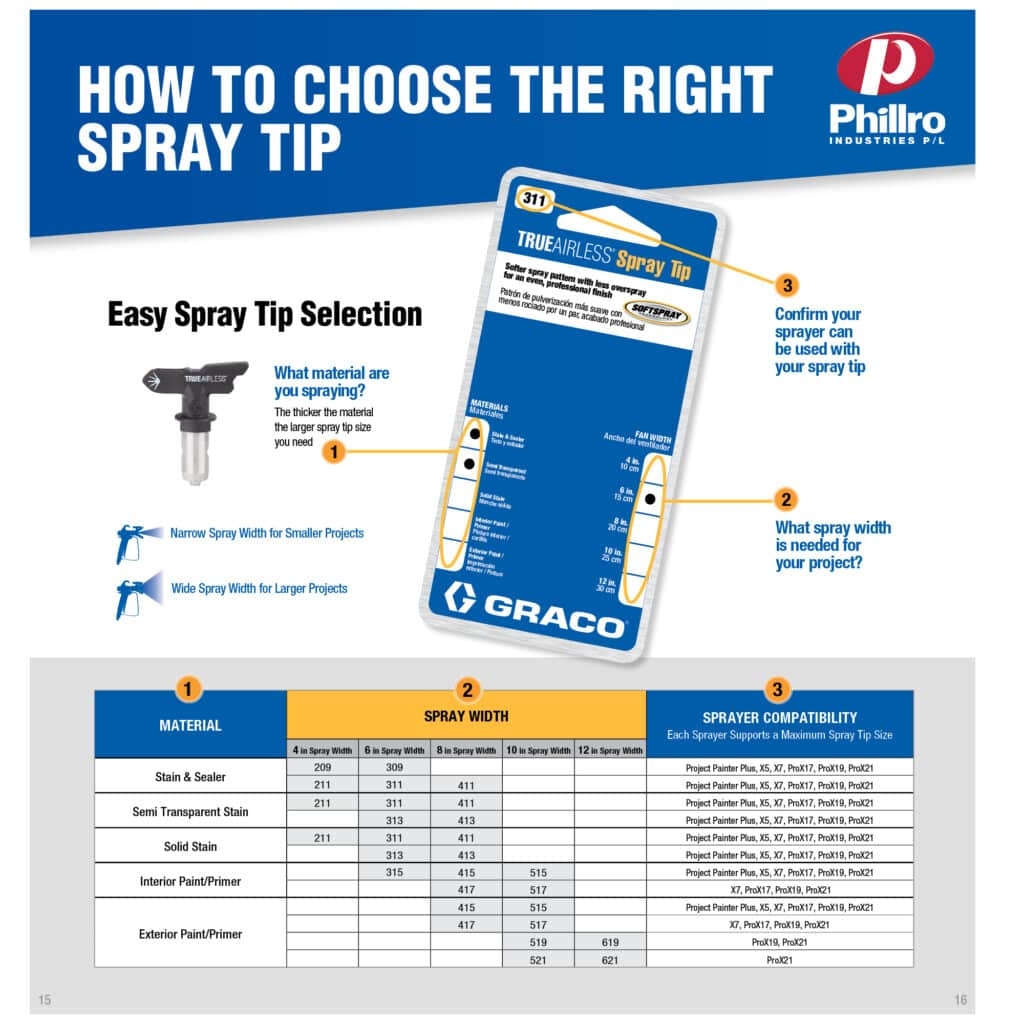

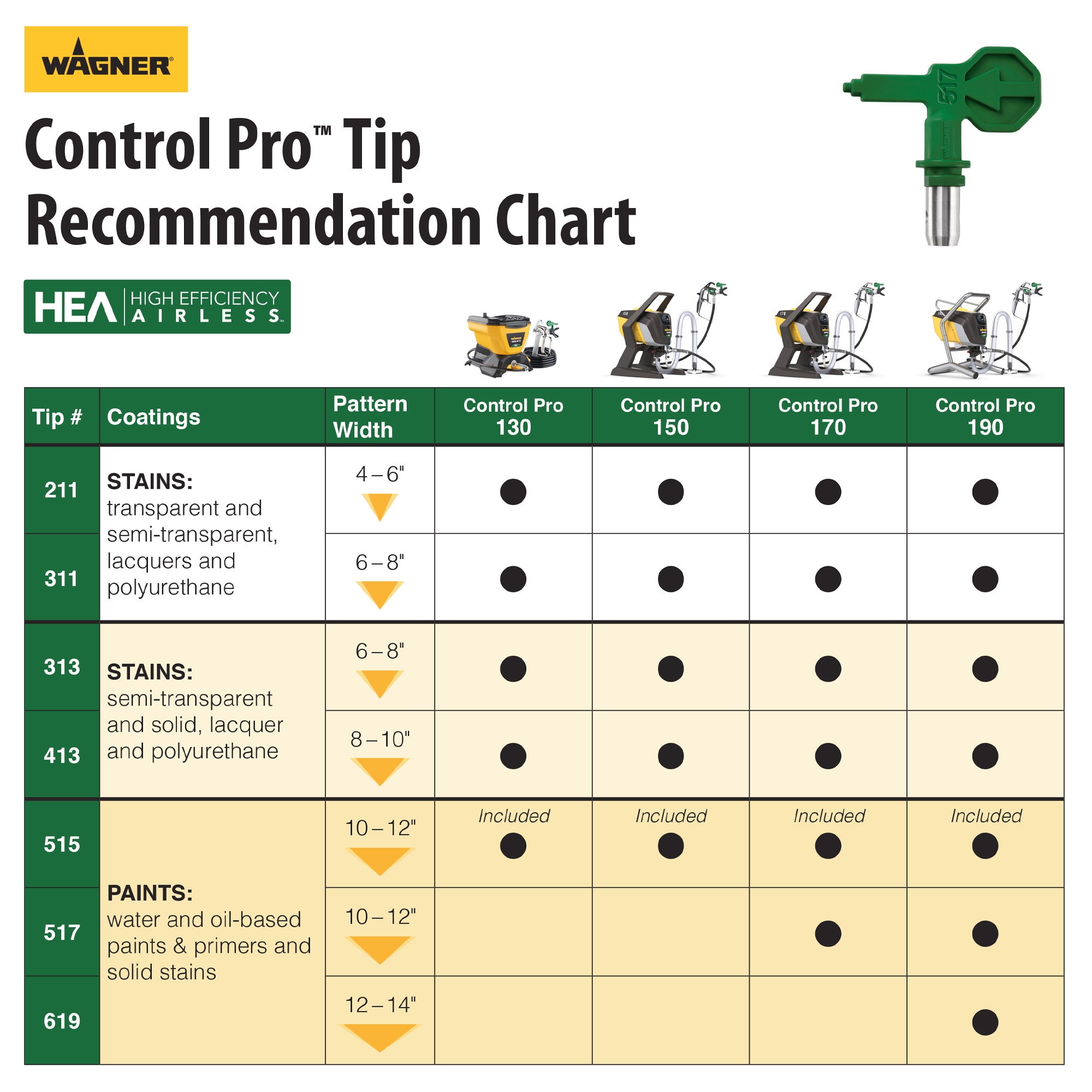

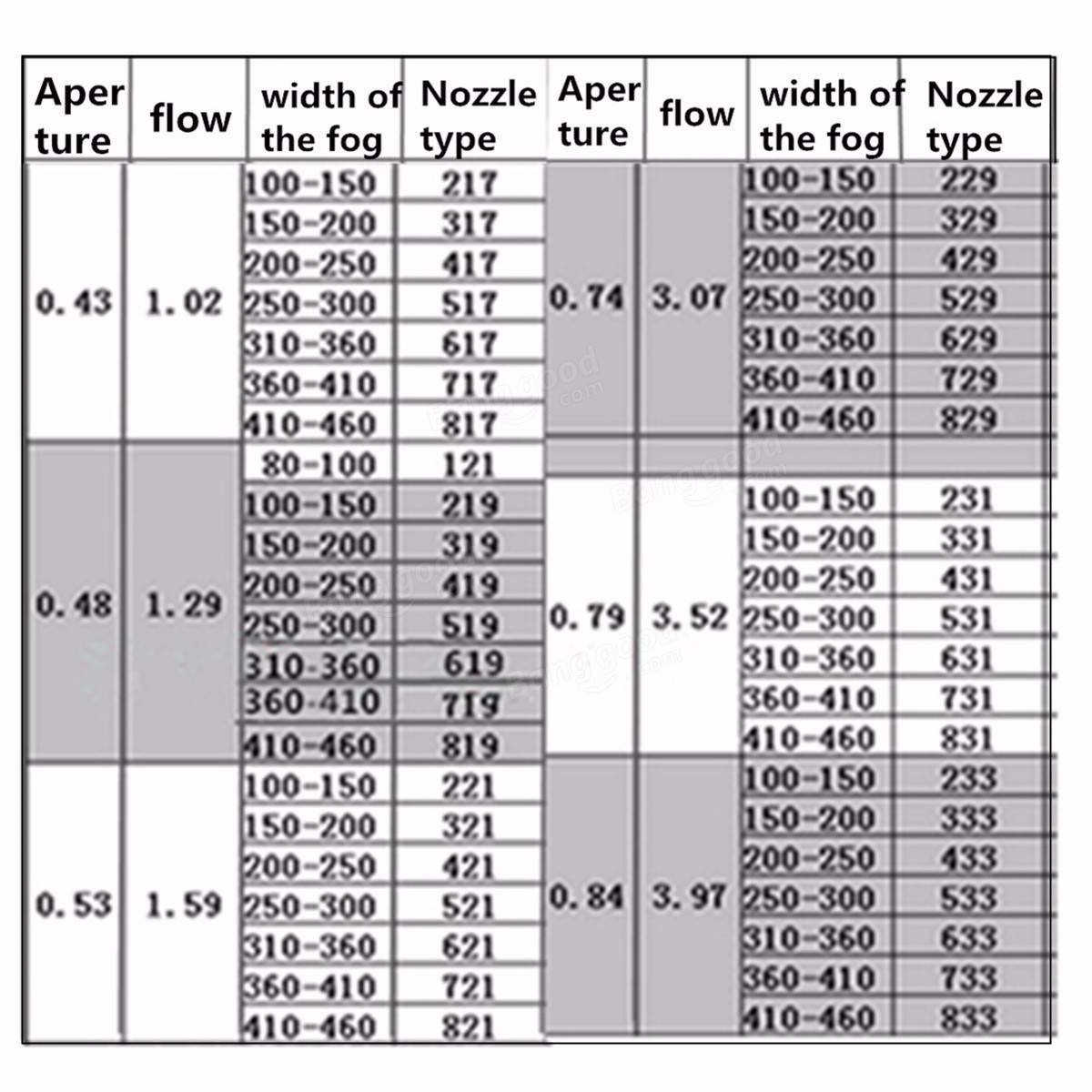

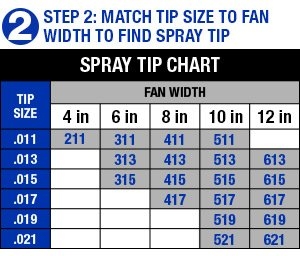

Tip Size Chart
When referring to an airless spray tip size chart, you will typically see a range of tip sizes listed along with recommended uses for each size. The chart will indicate the spray angle, flow rate, and compatibility with different types of coatings. Here are some common tip sizes and their recommended uses:
– 0.009″ – Ideal for fine finishes and detailed work such as trim and cabinets.
– 0.013″ – Suitable for general purpose spraying of walls, ceilings, and larger surfaces.
– 0.017″ – Recommended for thicker coatings like primers and heavy latex paints.
– 0.021″ – Best for high-volume spraying of heavy materials such as elastomerics and block fillers.
It is essential to consider the viscosity of the coating you are using when selecting a tip size. Thicker coatings will require a larger tip size to ensure proper atomization and coverage. Consulting the manufacturer’s guidelines for the paint you are using can also help determine the appropriate tip size for your project.
Keep in mind that the tip size will also affect the pressure setting on your sprayer. A smaller tip size will require higher pressure for proper atomization, while a larger tip size will require lower pressure. Adjusting the pressure accordingly will help prevent issues like overspray or uneven coverage.
In conclusion, using an airless spray tip size chart as a reference can greatly improve the efficiency and quality of your painting projects. By selecting the right tip size for the job, you can achieve professional results and save time and effort. Experimenting with different tip sizes and techniques will help you find the perfect combination for your specific needs.
