When it comes to plumbing and piping systems, it’s important to understand the concept of nominal pipe size. This measurement is used to describe the size of a pipe based on its inner diameter, rather than the actual physical dimensions. By referring to a nominal pipe size chart, you can easily determine the appropriate size of pipe for your specific needs.

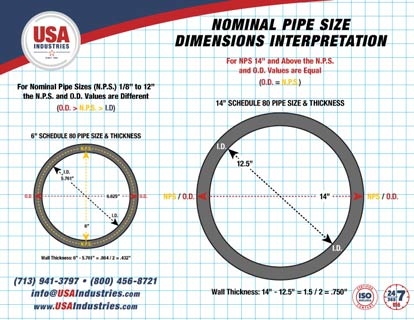

The nominal pipe size does not directly correspond to the actual dimensions of the pipe, but rather serves as a standardized reference point for pipe sizing. This can be especially useful when selecting pipes for different applications or when working with a variety of pipe materials.

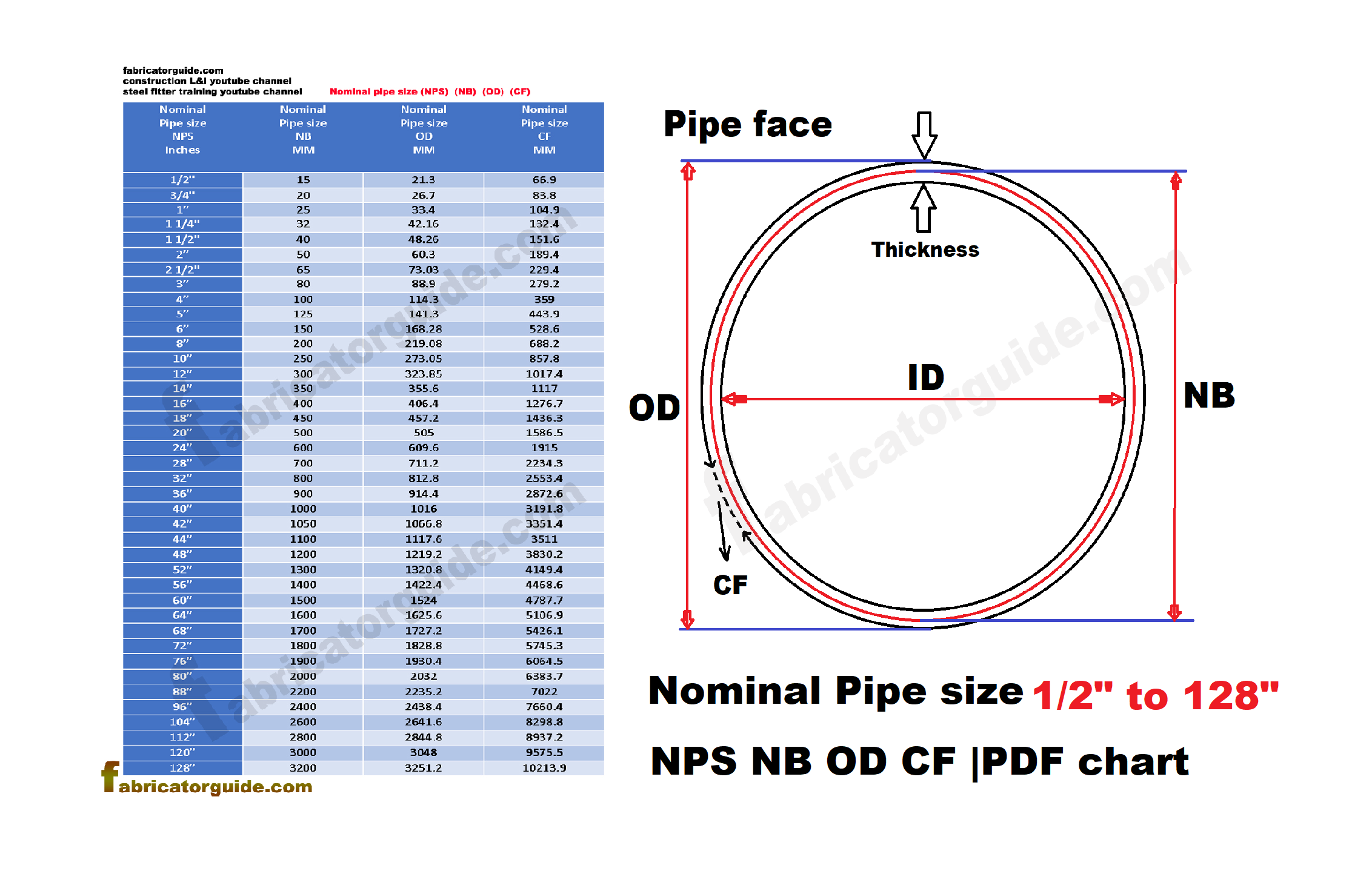

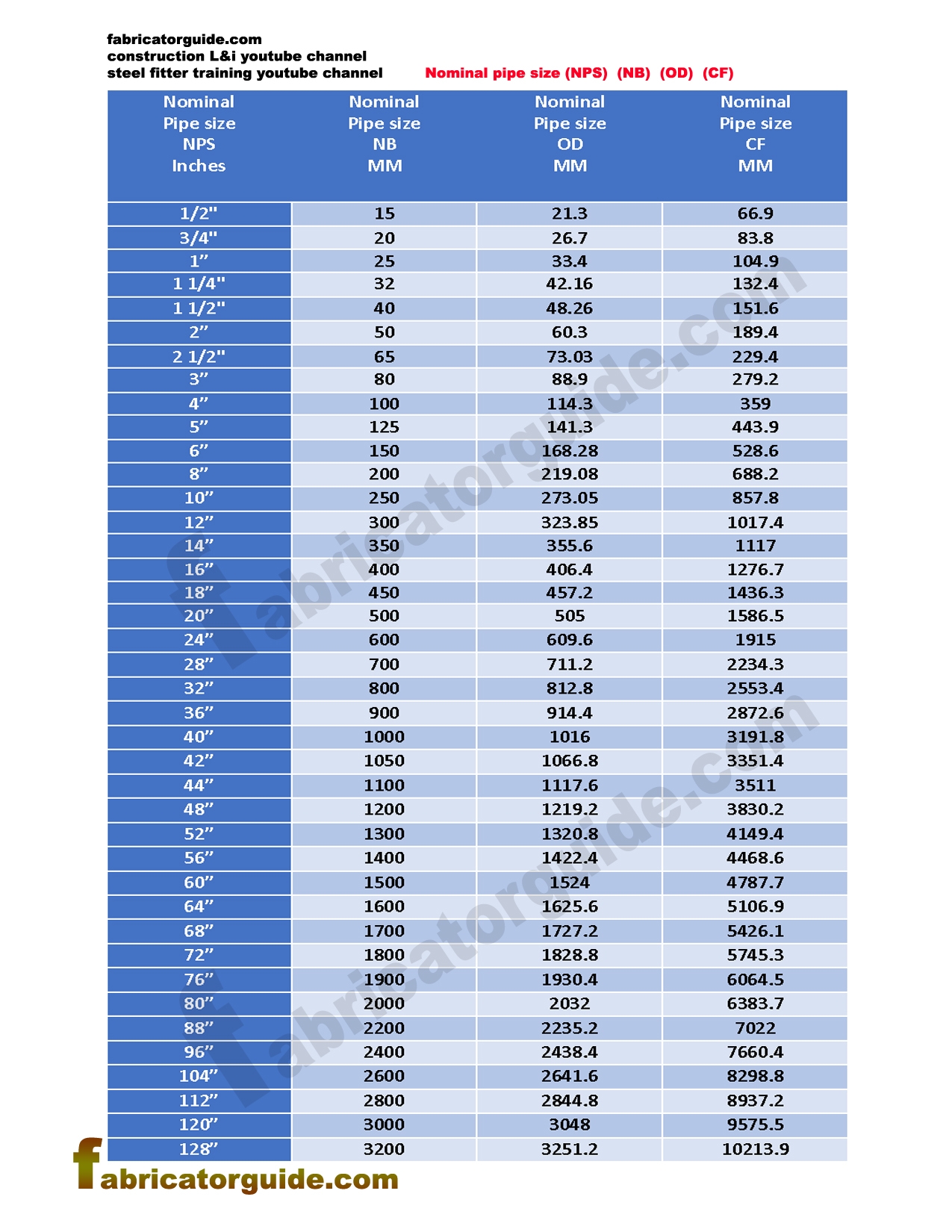

Nominal Pipe Size Chart

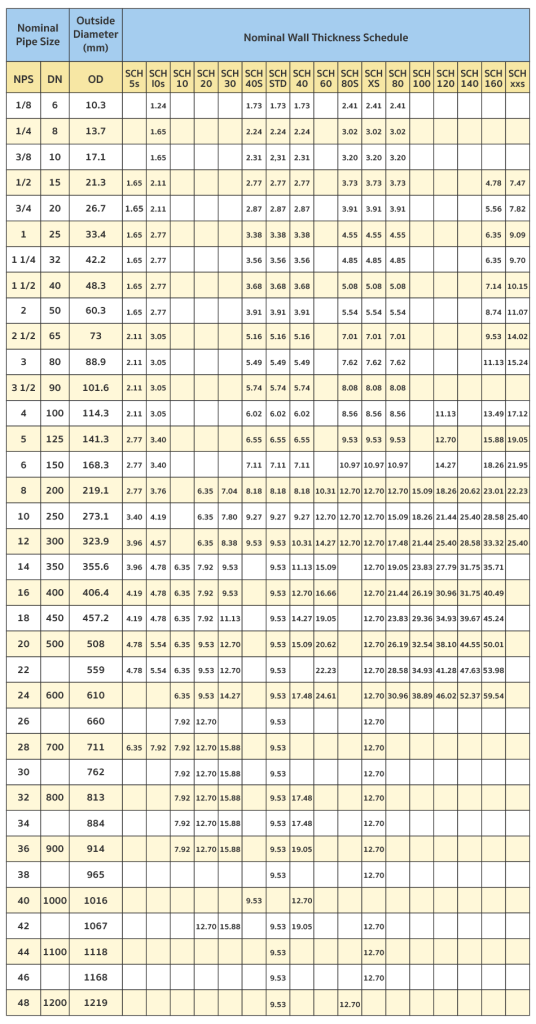

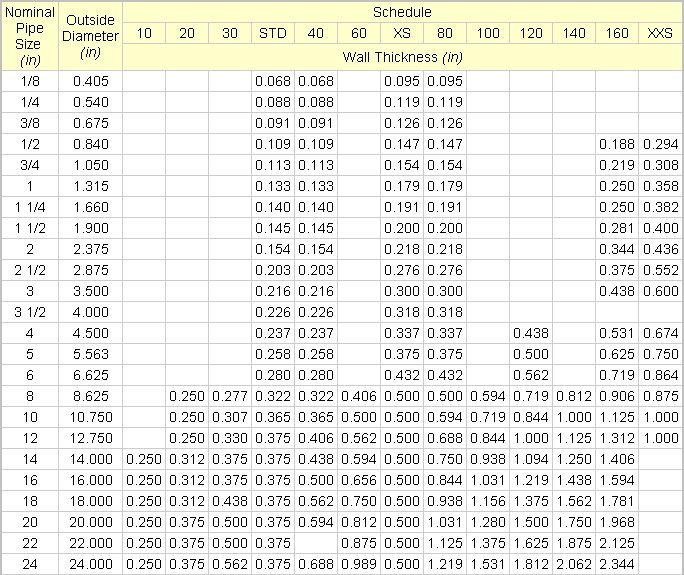

In the nominal pipe size chart, pipe sizes are typically listed in inches ranging from 1/8″ to 24″. The chart provides the nominal size, outside diameter, and wall thickness of each pipe size. This information can help you choose the right pipe for your project based on the required flow rate, pressure rating, and material compatibility.
It’s important to note that the actual dimensions of a pipe may vary slightly from the nominal size due to manufacturing tolerances. However, the nominal pipe size chart provides a standardized reference point that allows for easy communication and selection of pipes for various applications.
When using the nominal pipe size chart, it’s essential to consider factors such as material type, pressure rating, and temperature requirements. By carefully selecting the appropriate pipe size based on these factors, you can ensure the optimal performance and longevity of your plumbing or piping system.
In conclusion, the nominal pipe size chart serves as a valuable tool for selecting the right pipe size for your specific needs. By understanding the concept of nominal pipe size and referring to the chart for guidance, you can ensure the proper installation and functionality of your plumbing and piping systems.
Easily Download and Print nominal pipe size chart
