When it comes to piping systems, it is essential to understand the different sizes of pipes available. One standard measurement used in the industry is NPS, which stands for Nominal Pipe Size. NPS is a North American set of standard sizes for pipes used for high or low pressures and temperatures. Knowing the NPS pipe size chart can help in selecting the right pipe for your specific needs.

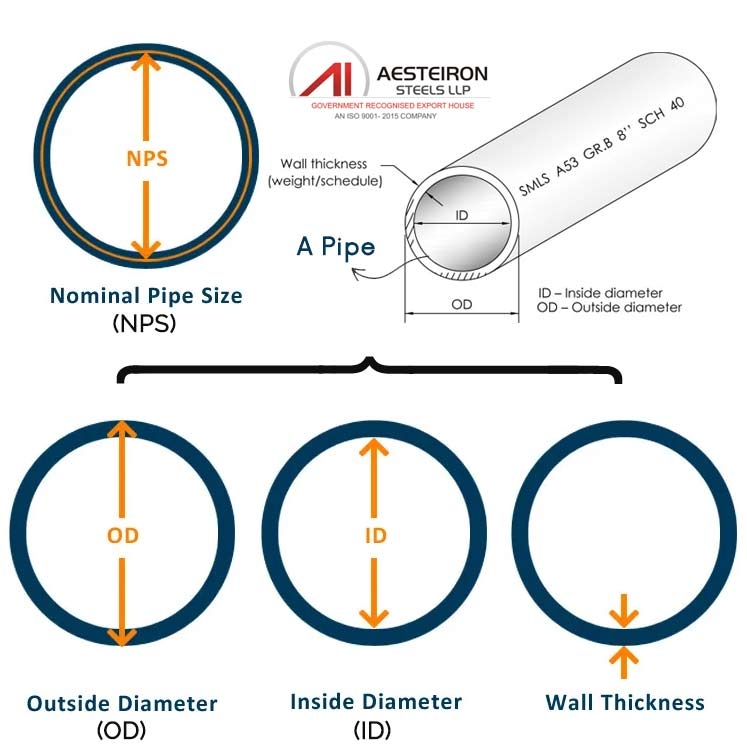

The NPS pipe size chart provides a list of nominal pipe sizes, their corresponding outside diameters, wall thicknesses, and approximate inside diameters. This chart is crucial for engineers, plumbers, and contractors to ensure the proper installation and functioning of piping systems.

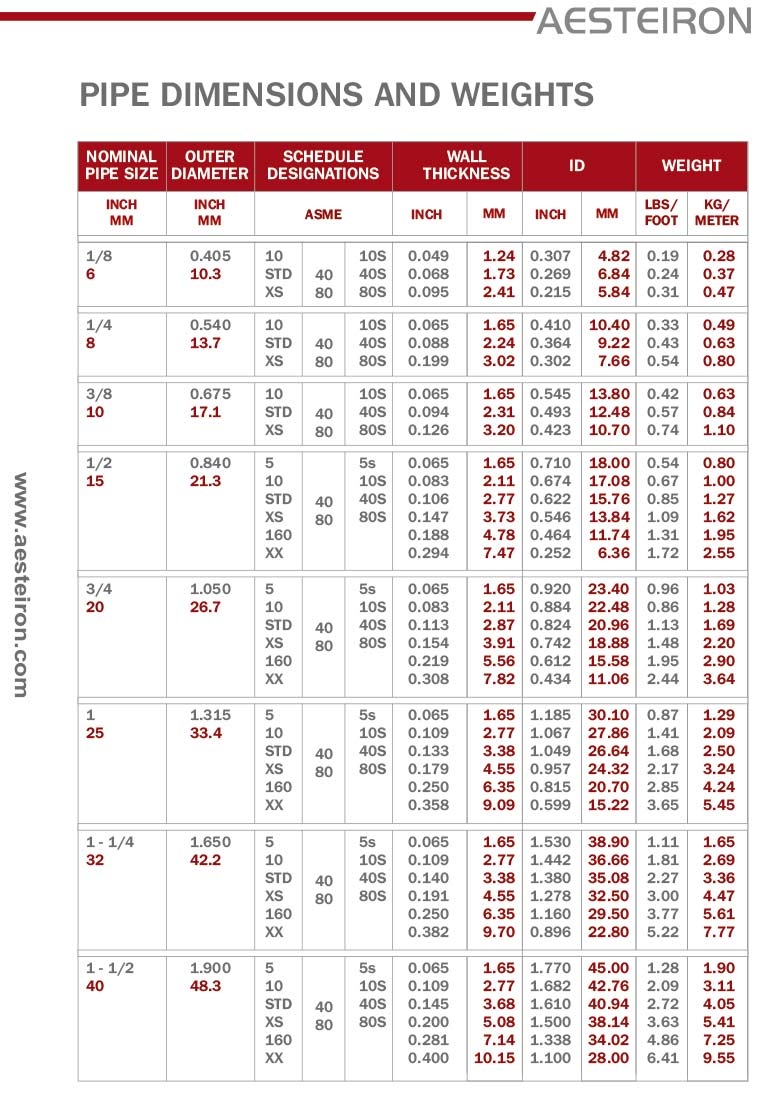

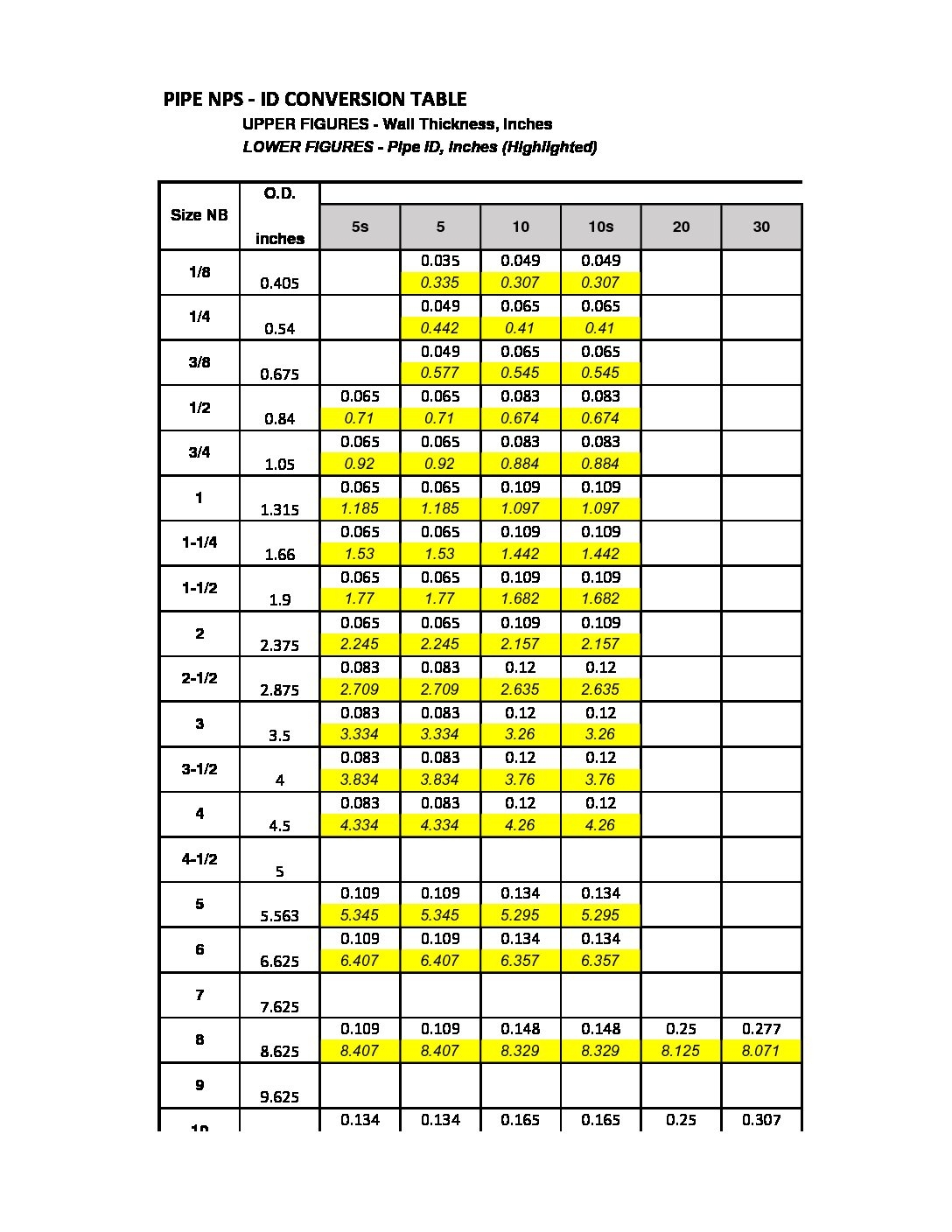

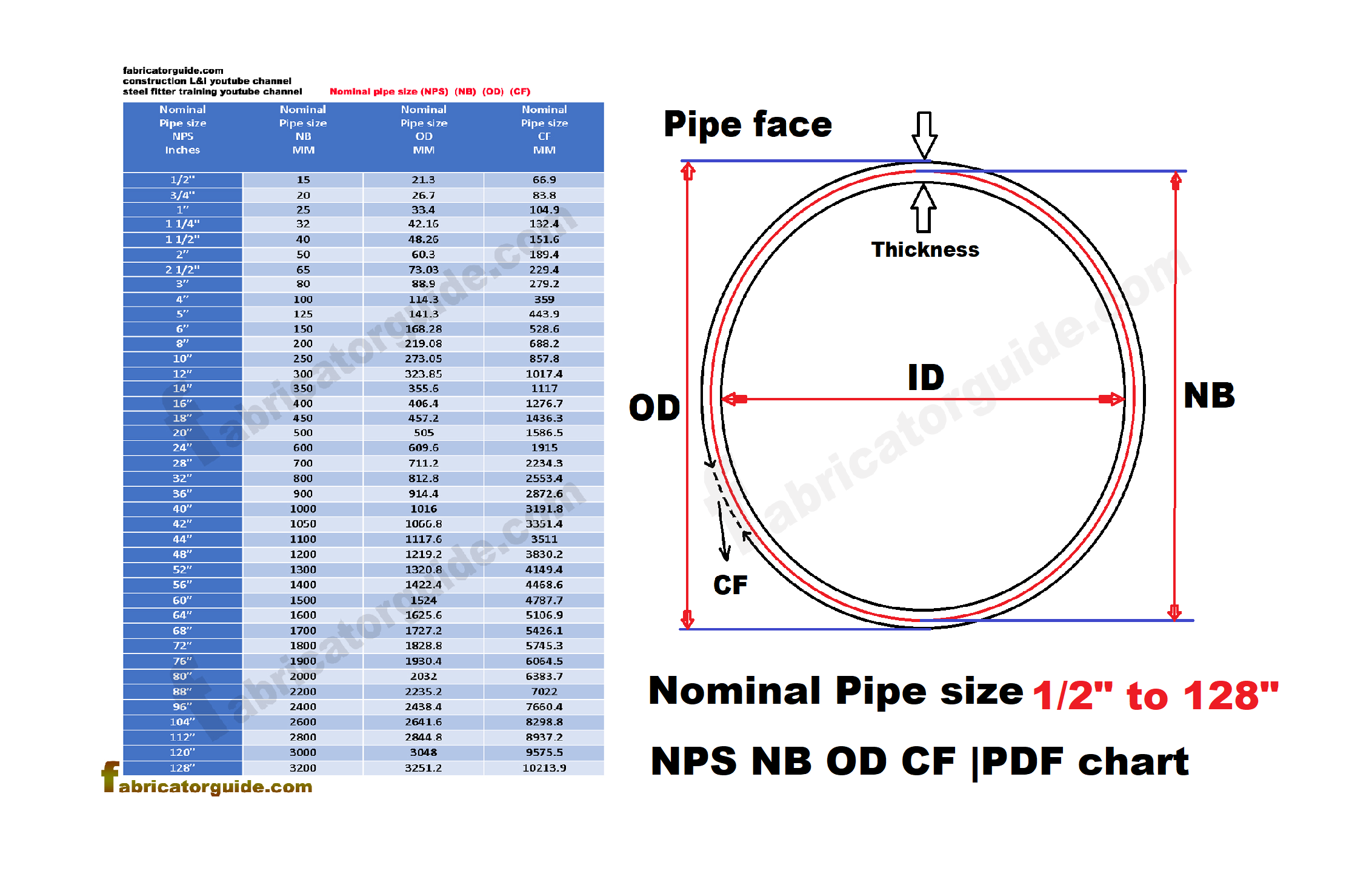

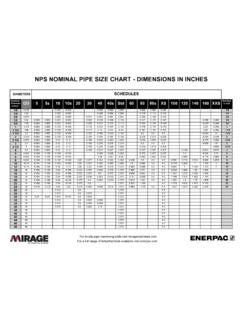

NPS Pipe Size Chart
Here is a sample NPS pipe size chart:
| Nominal Pipe Size (NPS) | Outside Diameter (OD) (inches) | Wall Thickness (inches) | Inside Diameter (ID) (inches) |
|---|---|---|---|
| 1/8 | 0.405 | 0.068 | 0.269 |
| 1/4 | 0.540 | 0.088 | 0.364 |
| 1/2 | 0.840 | 0.109 | 0.622 |
| 1 | 1.315 | 0.133 | 1.049 |
It is important to note that the NPS pipe size chart is based on the standard dimensions of steel pipe. Other materials like PVC, copper, or stainless steel may have different dimensions. Consulting the appropriate material specifications is necessary when working with non-steel pipes.
Additionally, the NPS pipe size chart only provides nominal sizes, and actual dimensions may vary slightly. It is recommended to consult with manufacturers or suppliers to ensure accurate measurements for specific projects.
By understanding and utilizing the NPS pipe size chart, professionals in the industry can make informed decisions on pipe selection, installation, and maintenance. This knowledge is essential for ensuring the efficiency and reliability of piping systems in various applications.
Overall, the NPS pipe size chart serves as a valuable tool for anyone working with piping systems. It provides a standardized reference for selecting and installing pipes, contributing to the overall success of construction projects and infrastructure development.
